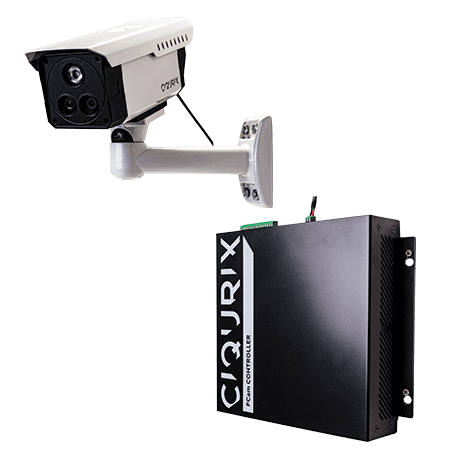

Video Fire Detection – FCam FLEX

The Ciqurix FCam™ Series is a revolutionary fire detection solution, combining infrared and visual feeds with built-in algorithms creating one of the most accurate and reliable fire detection solutions available today. Able to detect a semi-concealed 40cm pan fire at 180m and a lighter flame at 10m in under ten seconds, inside or outside, day or night, in all weather.

Ciqurix FCam video flame detection systems are available in two versions: FLEX and CORE. The same ground-breaking multi-spectrum fire detection technology is used across both ranges, but the hardware and control systems differ.

  • FLEX is a CCTV system that can provide supplemental fire detection. It is connected using standard Cat6 network cabling and can potentially use existing network infrastructure (where suitable). Devices can be powered locally at 12Vdc or via PoE (with adapter), and the system does not have battery backup. Camera feeds can be recorded and viewed on third-party CCTV recording equipment using the RTSP format.
  • CORE is a fire system which provides primary fire detection using CCTV technology. It is designed to be compliant to BS5839-1:2017 (UK fire standard), uses fire-rated cabling, and will operate from its internal battery supply for over 24 hours. Each device on a CORE system is connected directly to a CORE Control Hub (or Extension Hub) with a fire-rated 4-pair STP cable using the Ciqurix QLS protocol. Camera feeds can be recorded on a 3rd-party CCTV Network Video Recorder fitted inside the CORE Control Hub or Video Hub and viewed remotely.

Click on the Videos tab below for more information.

Code:
CX-FLX-
Category:



FCam FLEX
FLEX Control Equipment
CX-FLX-2GNVR8 FCam To Go – 8ch NVR (4 triggers), 8 camera connections
CX-FLX-2GNVR16 FCam To Go – 16ch NVR (16 triggers), 16 camera connections
CX-FLX-CON FCam Controller v3
FCam Solo
CX-FLX-FCAM-S4 FCam Solo 4mm
CX-FLX-FCAM-S6 FCam Solo 6mm
FCam X
CX-FLX-FCAM-X4 FCam X 4mm (needs bracket)
CX-FLX-FCAM-X6 FCam X 6mm (needs bracket)
FCam XCR
CX-FLX-FCAM-XCR4 FCam XCR 4mm
CX-FLX-FCAM-XCR6 FCam XCR 6mm
